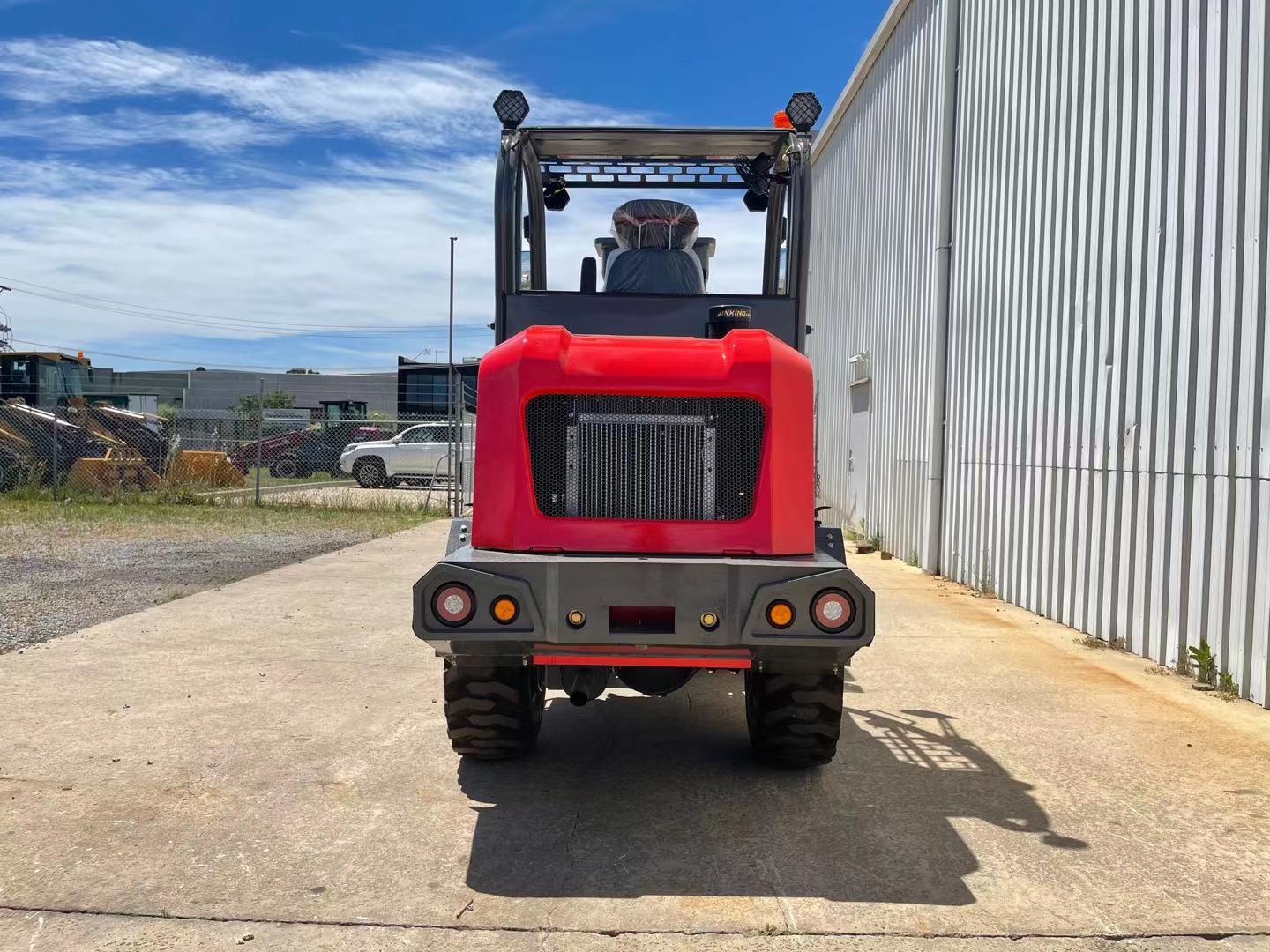

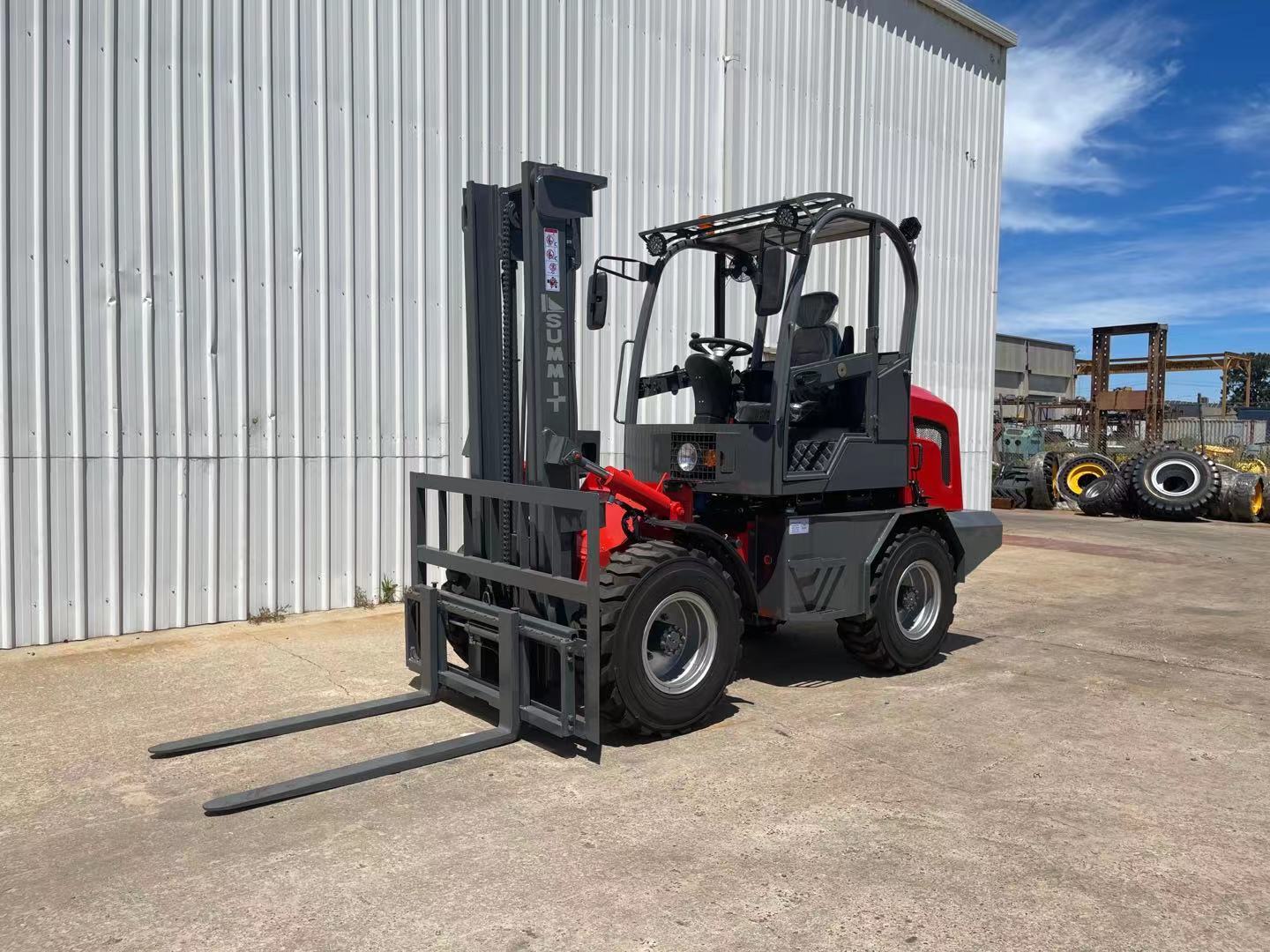

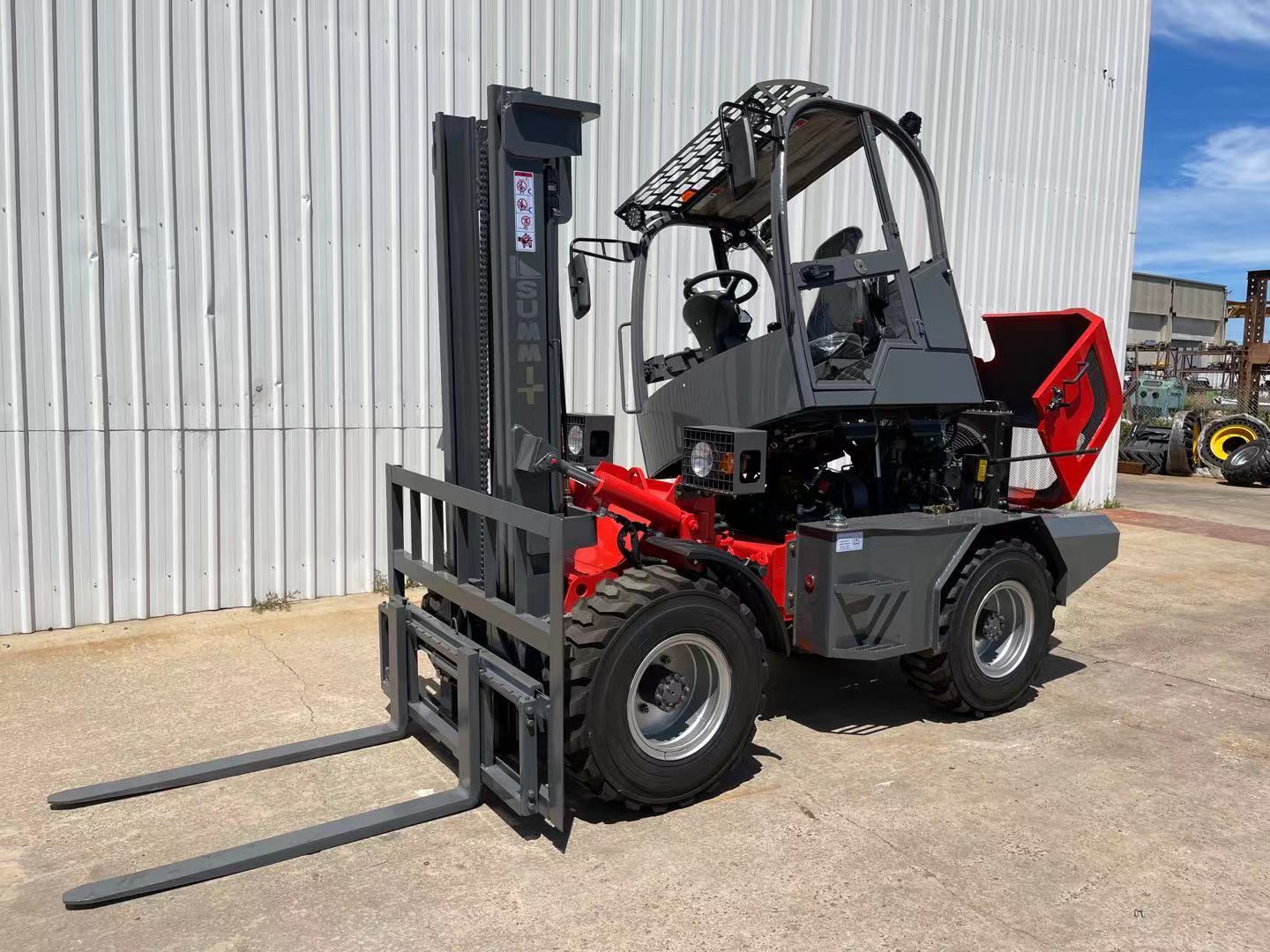

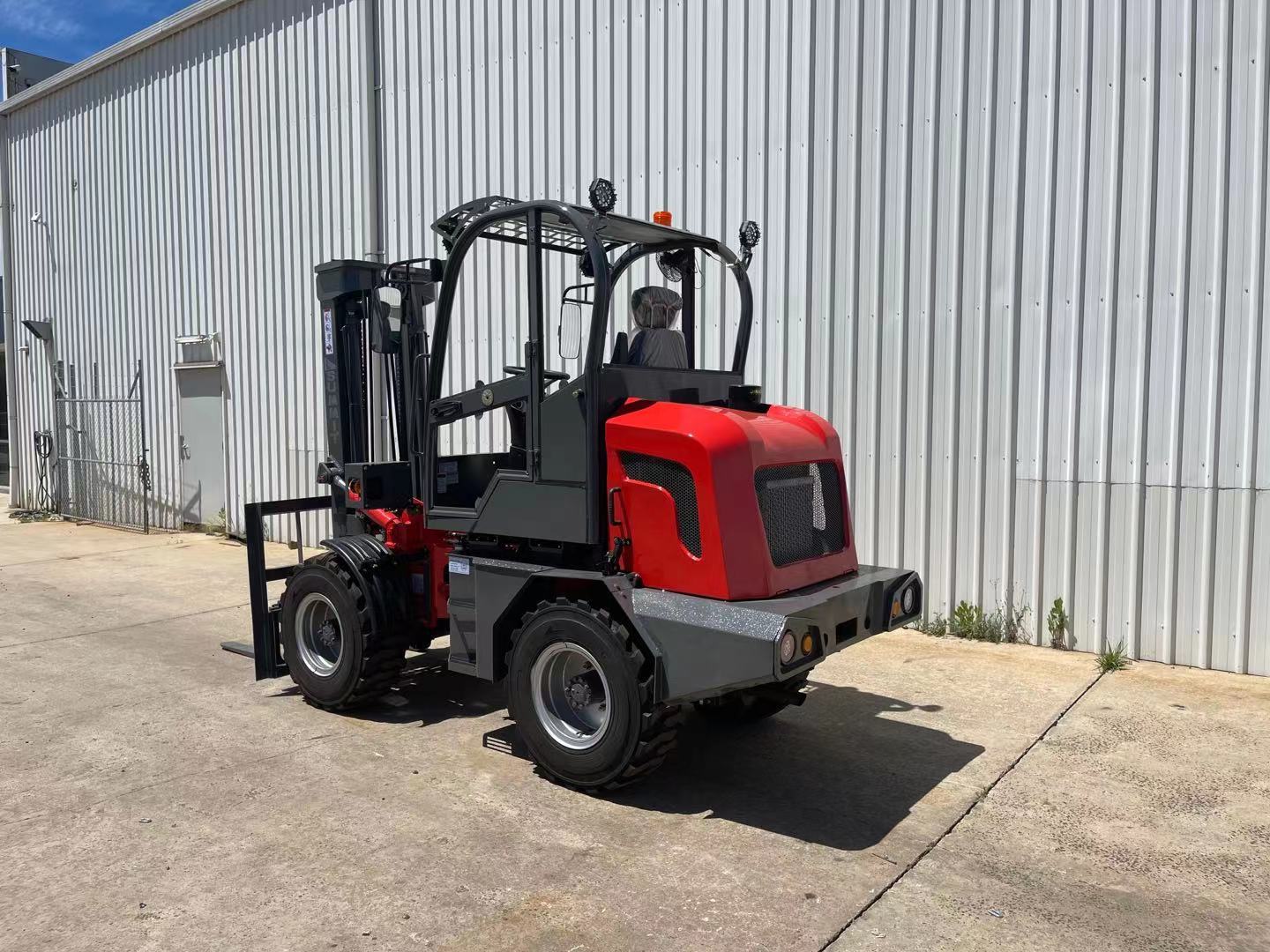

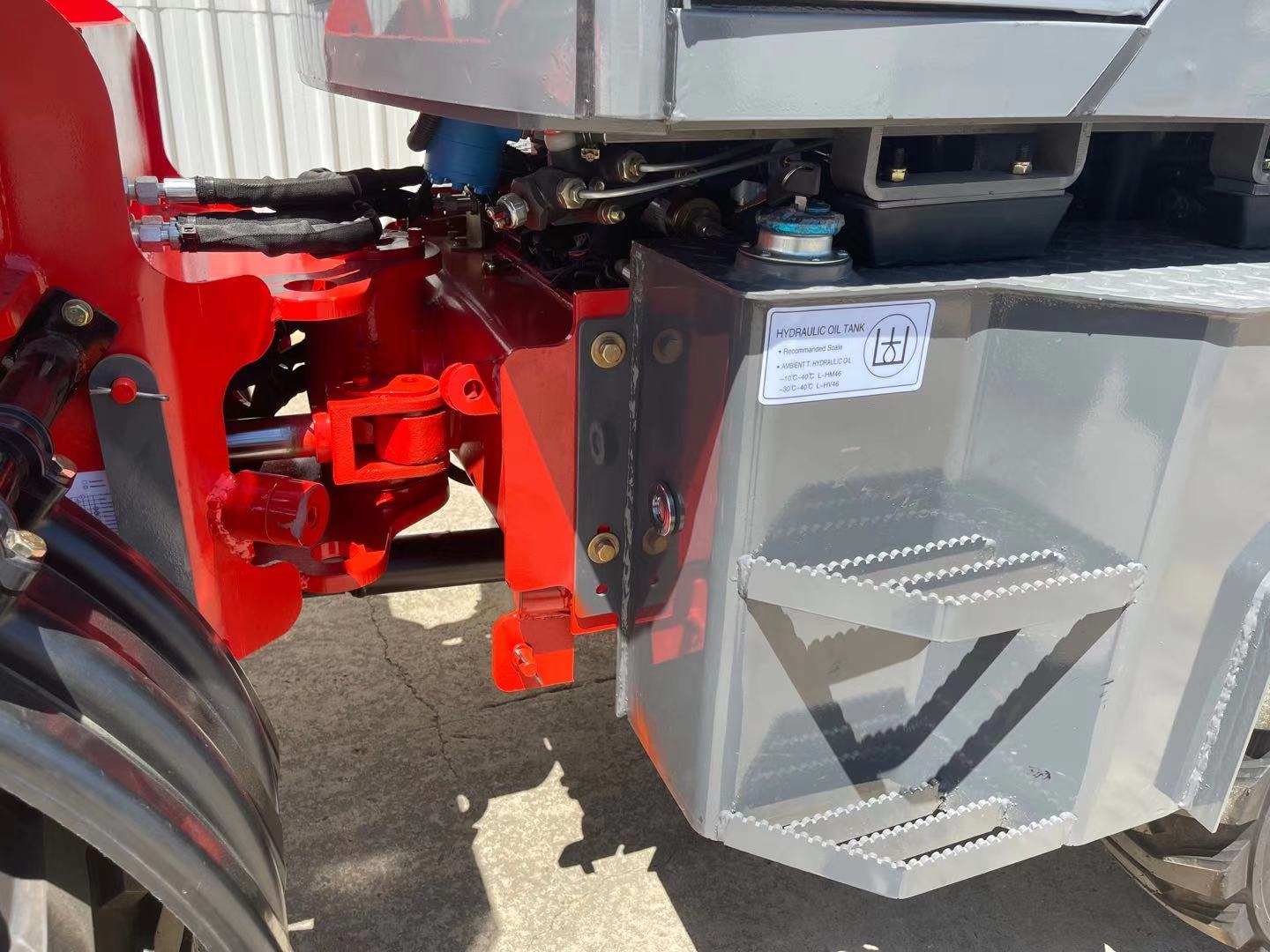

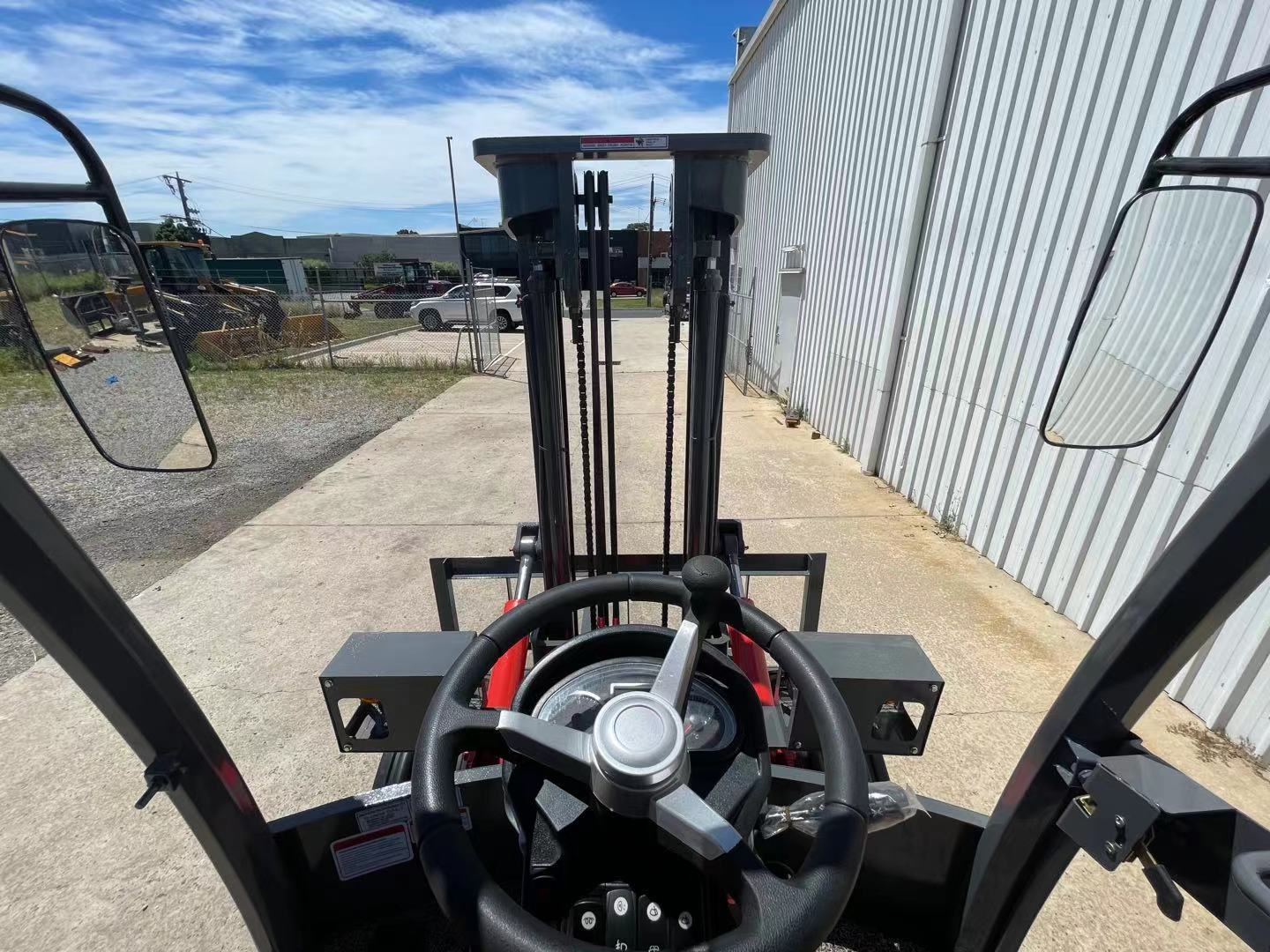

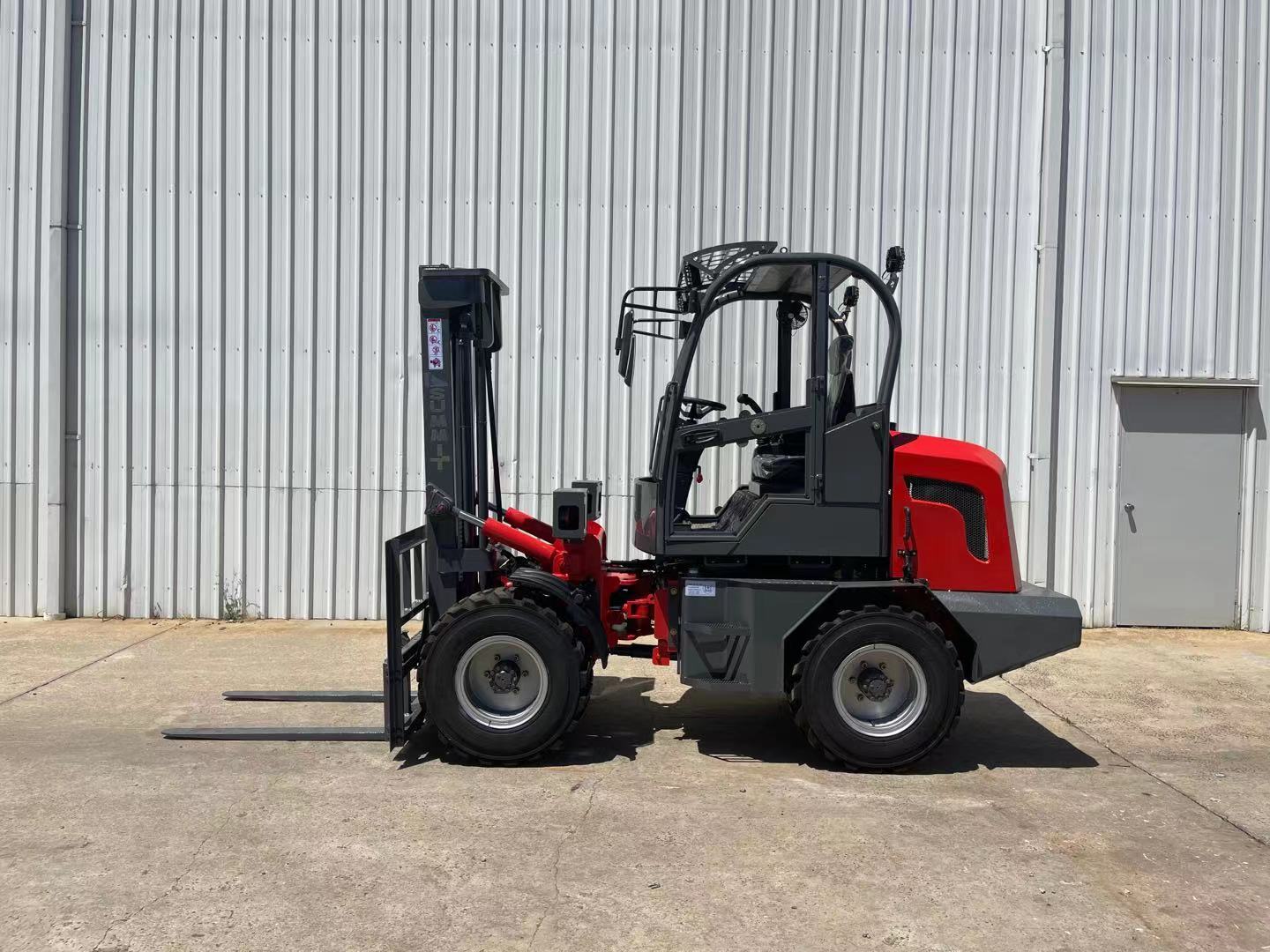

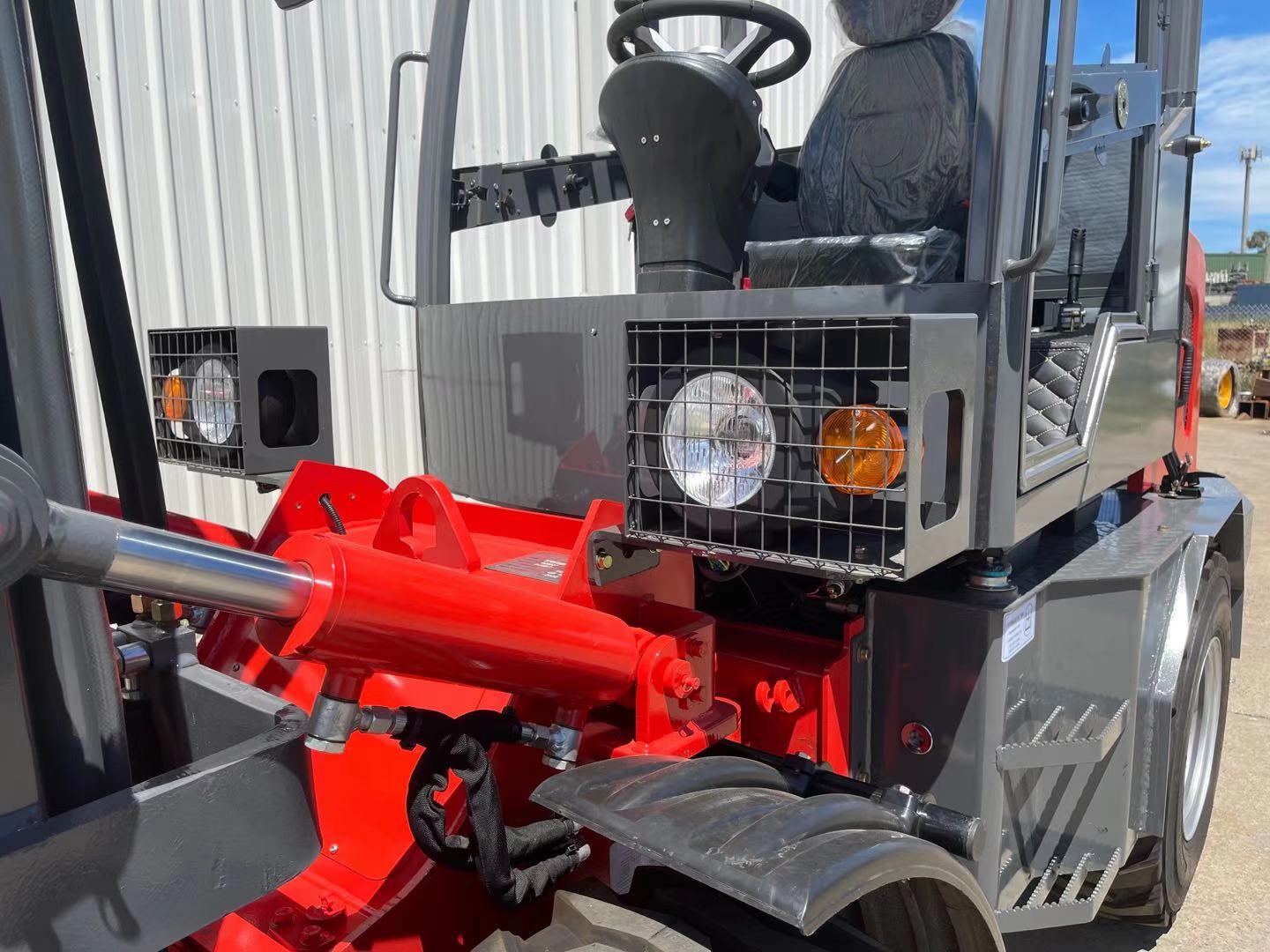

Name: Summit ATFL20 2 Tonne 4WD Rough Terrain Forklift
SKU: 1451
Availability: InStock

Summit ATFL20 2 Tonne 4WD Rough Terrain Forklift - Image 10

Summit ATFL20 2 Tonne 4WD Rough Terrain Forklift - Image 11

$27,000 (Plus GST)

Body style: forklift
Operating weight: 3500kg
Lifting weight: 2000kg
Lifting height: 3500mm
Engine: Perkins Type 50HP Diesel Engine
Transmission: 2 Speed Electronic Powershift
Condition: Brand New
Steering: Articulate

PDF Brochure

Request More Info

Features
Technical Specifications
Comes with
Optional Attachments for Wheeloaders

Dimension:

Size without fork (mm): 3200(L)*1350(W)*2300(H)
Fork length(mm): 1260
Wheelbase (mm): 2100
Operate weight (kg): 3500
Tipping Load Straight(kg): 2000
Tipping Load Full Turn (kg): 1800

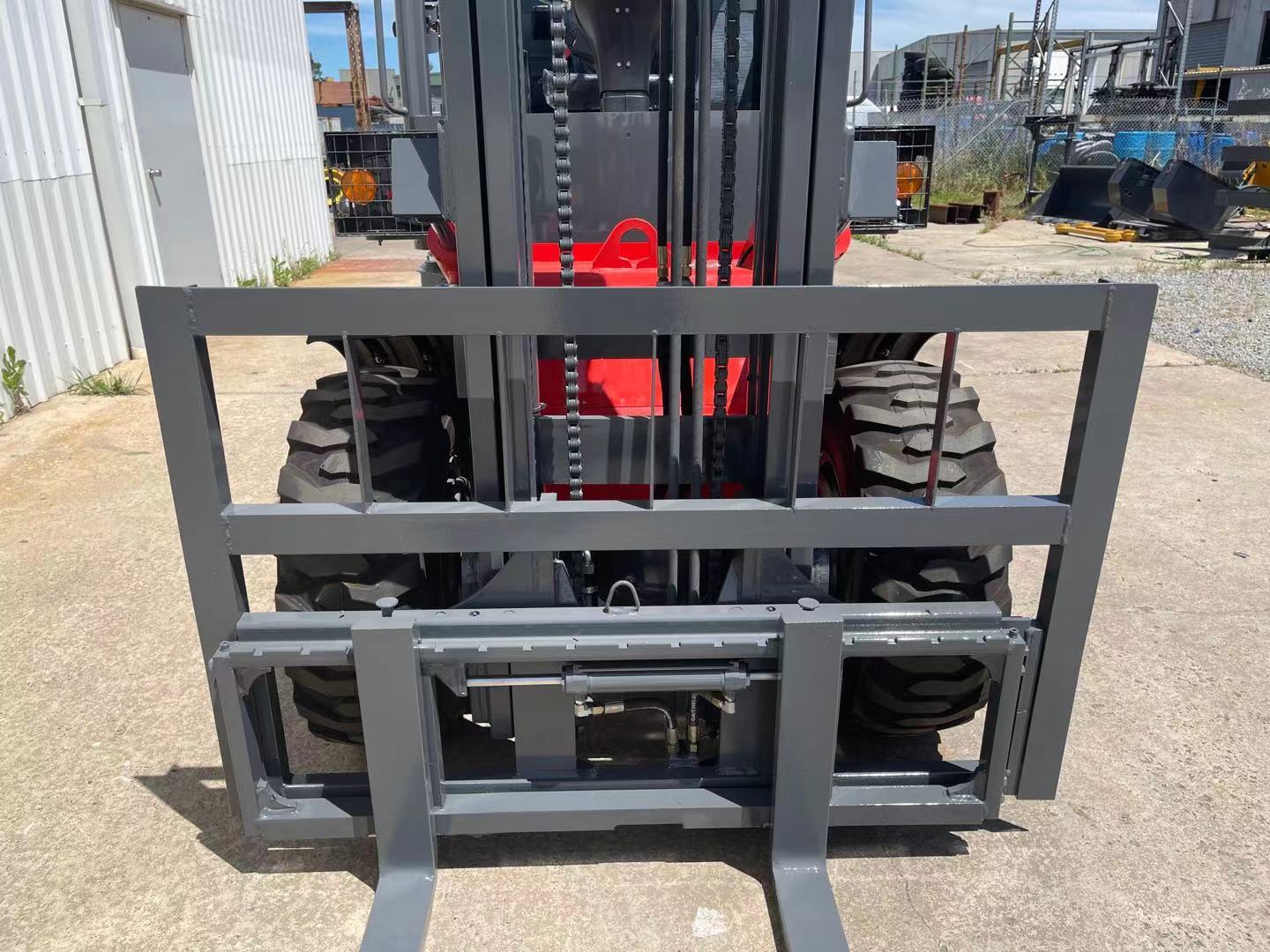

Mast:

Mast Type: 2 Stage Mast With Side Shift
Lifting height(mm): 3500mm
Lift TIME(mm): 7S

Performance:

Drive Train: Constant Four Wheel drive

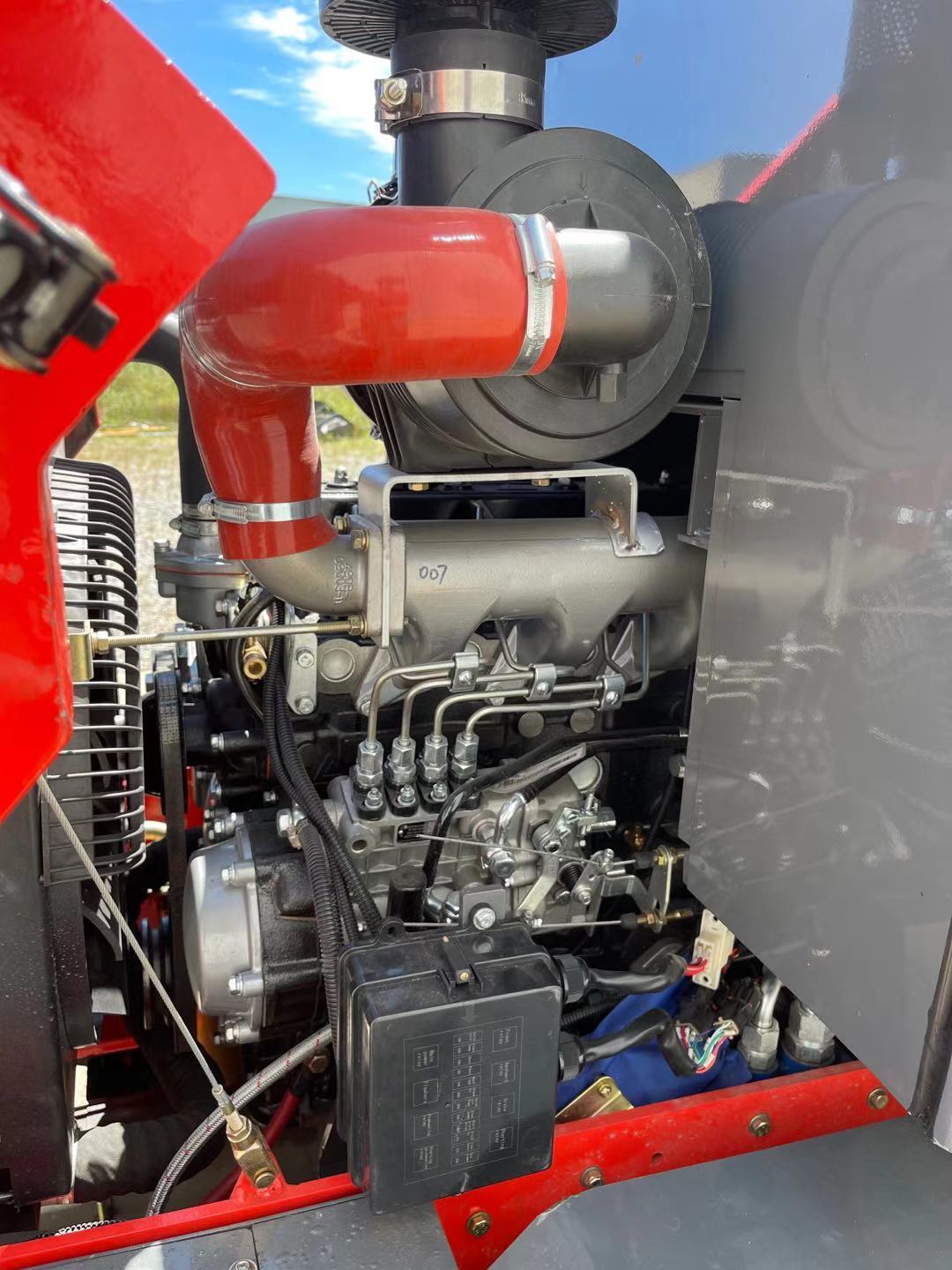

Engine Model: XinChai 498BT Diesel Engine
Rated output(kw): 51HP

Type: Inline,vertical,water-cooled,four-stroke

Number of cylinders: 4

Method of starting: Electric

Maximum speed: 25km/hr

Tyre:

Type: Pneumatic
Size: 12-16.5

Technical Specifications

a) Total Length - 4960mm b) Length to Fork Carriage - 3450mm c) Forks Length - 1220mm d) Ground Clearance - 350mm e) Total Height - 2650mm f) Mast Height - 2600mm g) Overall Width - 1450mm h) Operating Weight - 3500kg i) Tipping Load Straight - 2000kg j) Tipping Load Full Turn - 1800kg
